Iscar

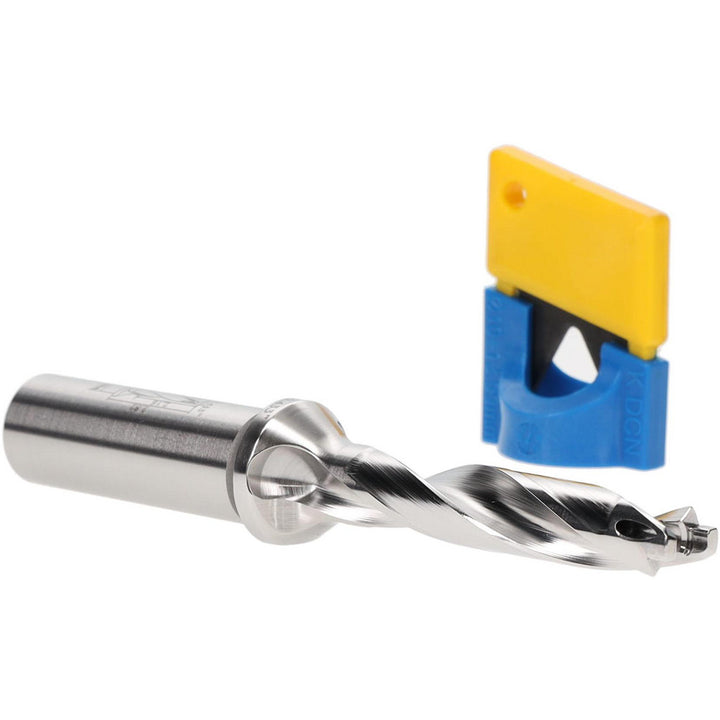

Indexable Drilling - Iscar 3202626
MFR# 3202626Series SumoCham
$310.18List $320.30
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202626 indexable drilling. Series SumoCham.
Specifications
Body length2.8200in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio5xD
Insert seat size11
Maximum drill depth2.1600
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.4490
Minimum drill diameter0.4330
Overall length4.7100in
Shank diameter in5/8in
Shank length1.8900in
Shank typeStraight-Cylindrical
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
