Iscar

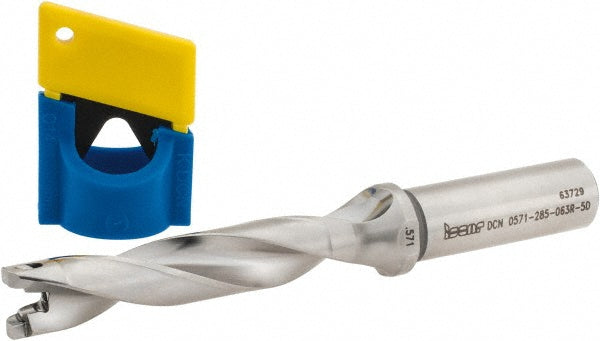

Indexable Drilling - Iscar 3202636
MFR# 3202636Series SumoCham
$329.26List $340.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202636 indexable drilling. Series SumoCham.
Specifications
Body length3.6500in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio5xD
Insert seat size14
Maximum drill depth2.8500
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter0.5870
Minimum drill diameter0.5710
Overall length5.5400in
Shank diameter in5/8in
Shank length1.8900in
Shank typeStraight-Cylindrical
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
