Iscar

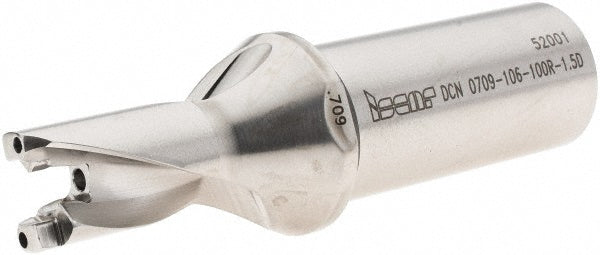

Indexable Drilling - Iscar 3202643
MFR# 3202643Series SumoCham
$315.21List $325.50
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202643 indexable drilling. Series SumoCham.
Specifications
Body length2.19
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Insert seat size18
Maximum drill depth1.0600
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.7440
Minimum drill diameter0.7090
Overall length4.39
Shank diameter in1
Shank length2.2000
Shank typeStraight-Cylindrical
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
