Iscar

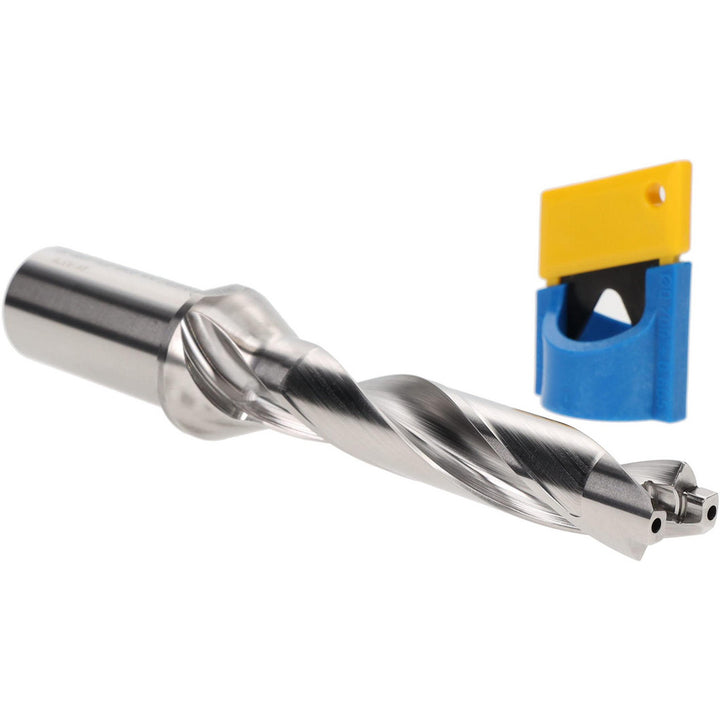

Indexable Drilling - Iscar 3202646
MFR# 3202646Series SumoCham
$465.81List $481.00
Save 3%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202646 indexable drilling. Series SumoCham.
Specifications
Body length4.9200in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio5xD
Insert seat size19
Maximum drill depth3.7400
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter0.7830
Minimum drill diameter0.7480
Overall length7.1200in
Shank diameter in1in
Shank length2.2000in
Shank typeStraight-Cylindrical
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
