Iscar

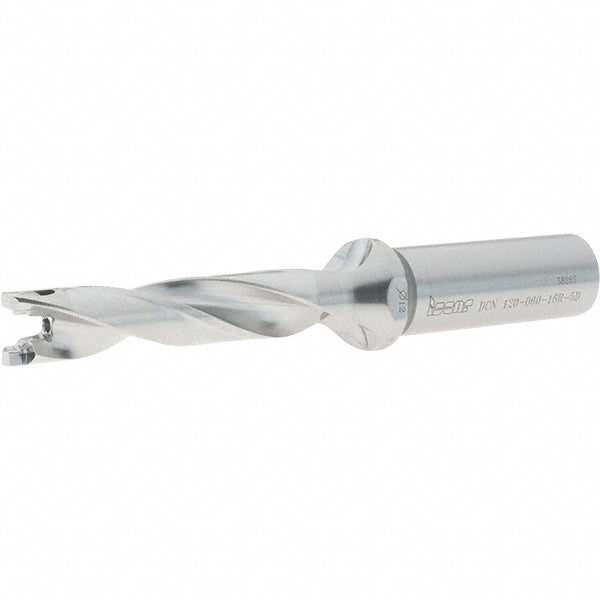

Indexable Drilling - Iscar 3202677
MFR# 3202677Series SumoCham
$310.18List $320.30
Save 3%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202677 indexable drilling. Series SumoCham.
Specifications
Body length77.00
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio5xD
Insert seat size12
Maximum drill depth (mm)60.00
Maximum drill depth range (mm)60.00 to 80.00
Maximum drill diameter (mm)12.40
Minimum drill diameter (mm)12.00
Overall length (mm)125.00mm
Shank diameter (mm)16.00mm
Shank length (mm)48.00mm
Shank typeStraight-Cylindrical
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
