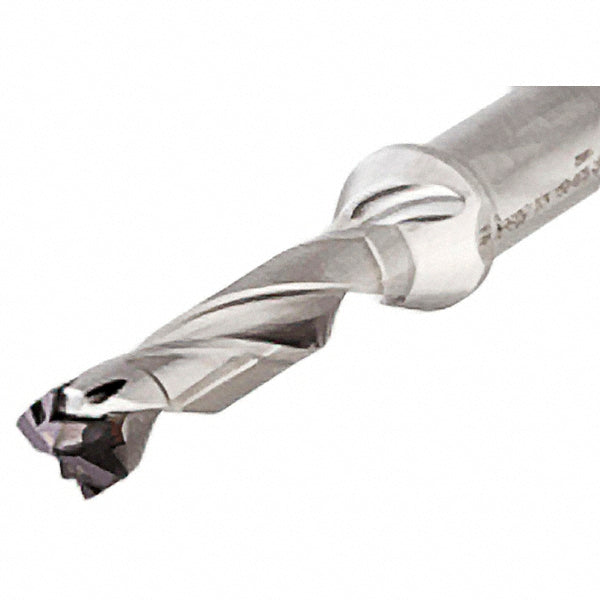

Indexable Drilling - Iscar 3202683
MFR# 3202683Series SumoCham
$333.14List $344.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202683 indexable drilling. Series SumoCham.
Specifications
Body length85.10
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio5xD
Insert seat size13
Maximum drill depth (mm)68.00
Maximum drill depth range (mm)60.00 to 80.00
Maximum drill diameter (mm)13.90
Minimum drill diameter (mm)13.50
Overall length (mm)133.10mm
Shank diameter (mm)16.00mm
Shank length (mm)48.00mm
Shank typeStraight-Cylindrical
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
