Iscar

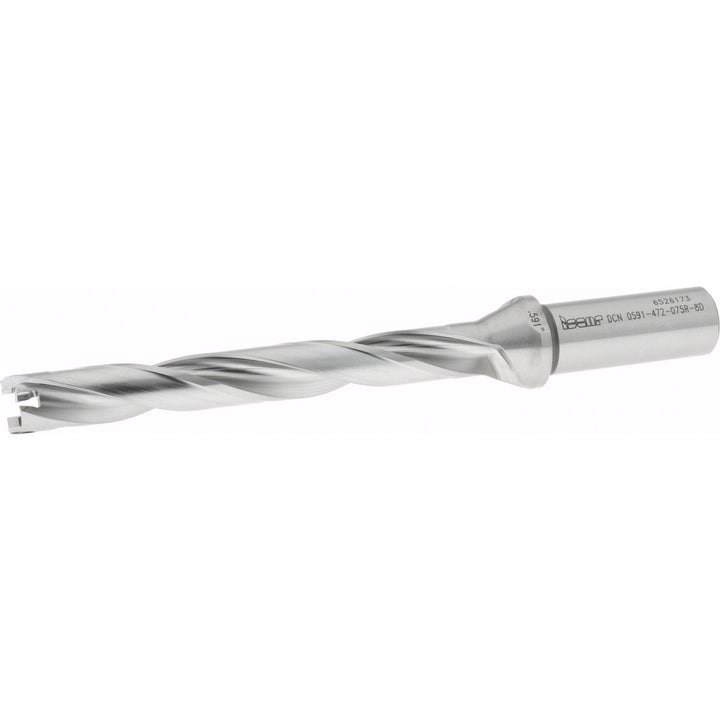

Indexable Drilling - Iscar 3202721
MFR# 3202721Series SumoCham
$399.14List $405.00
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202721 indexable drilling. Series SumoCham.
Specifications
Body length5.66
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio8xD
Insert seat size15
Maximum drill depth4.7200
Maximum drill depth range4.5000 to 6.0000
Maximum drill diameter0.6260
Minimum drill diameter0.5910
Overall length7.63
Shank diameter in3/4
Shank length1.9700
Shank typeStraight-Cylindrical
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
