Iscar

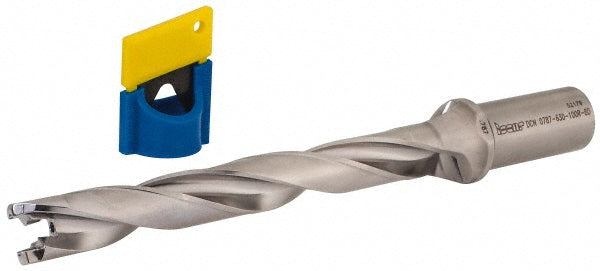

Indexable Drilling - Iscar 3202726
MFR# 3202726Series SumoCham
$560.62List $578.90
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202726 indexable drilling. Series SumoCham.
Specifications
Body length7.5400in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio8xD
Insert seat size20
Maximum drill depth6.3000
Maximum drill depth range6.0000 to 8.0000
Maximum drill diameter0.8230
Minimum drill diameter0.7870
Overall length9.7400in
Shank diameter in1in
Shank length2.2000in
Shank typeStraight-Cylindrical
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
