Iscar

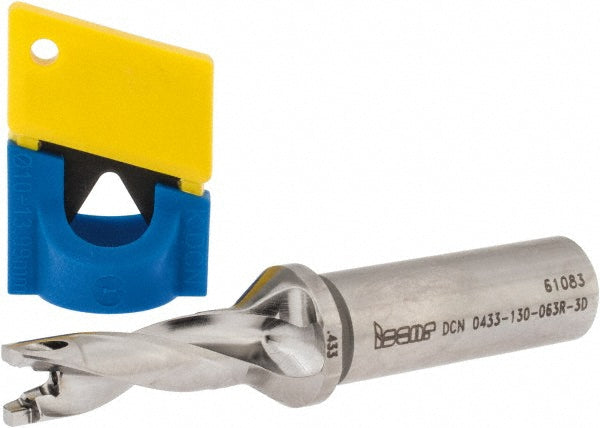

Indexable Drilling - Iscar 3202785
MFR# 3202785Series SumoCham
$266.98List $270.90
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202785 indexable drilling. Series SumoCham.
Specifications
Body length1.9500in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio3xD
Insert seat size11
Maximum drill depth1.3000
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.4490
Minimum drill diameter0.4330
Overall length3.8400in
Shank diameter in5/8in
Shank length1.8900in
Shank typeStraight-Cylindrical
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
