Iscar

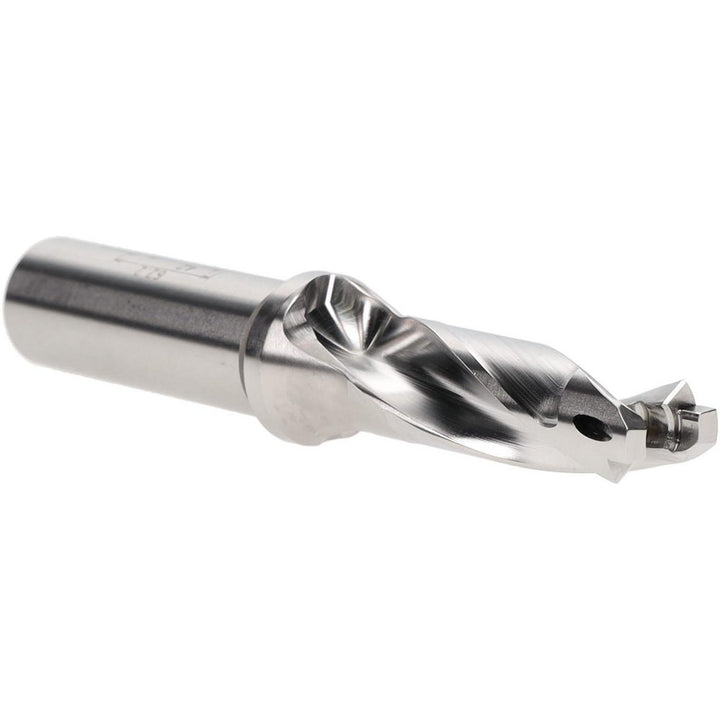

Indexable Drilling - Iscar 3202797
MFR# 3202797Series SumoCham
$281.32List $290.50
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202797 indexable drilling. Series SumoCham.
Specifications
Body length2.4449in
Compatible insert styleFCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length1.6535
Insert seat size14
Maximum drill depth1.6535
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.5669
Minimum drill diameter0.5512
Overall length4.3347in
Shank diameter0.6299
Shank length1.8898in
Shank typeStraight-Cylindrical
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
