Iscar

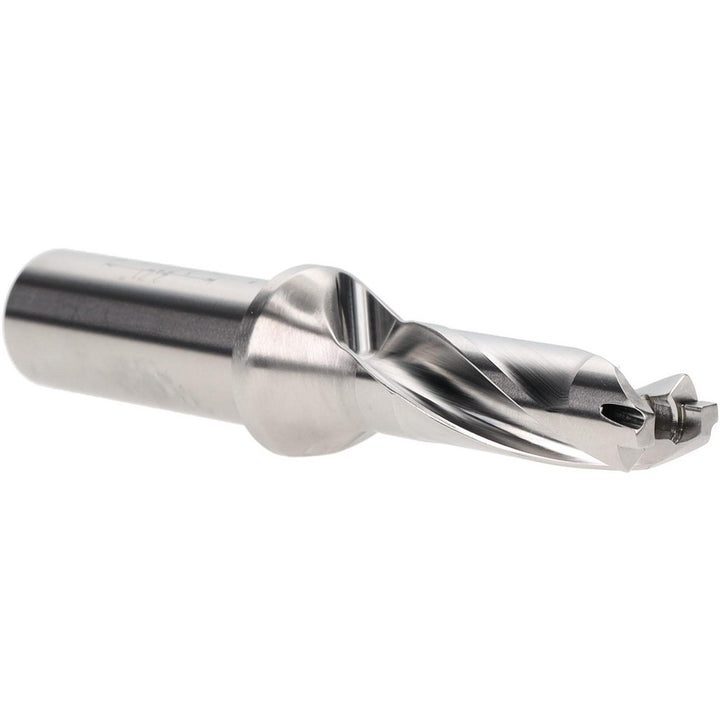

Indexable Drilling - Iscar 3202801
MFR# 3202801Series SumoCham
$303.21List $313.10
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202801 indexable drilling. Series SumoCham.
Specifications
Body length2.7100in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio3xD
Maximum drill depth1.7700
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.6260
Minimum drill diameter0.5910
Overall length4.6800in
Shank diameter in3/4in
Shank length1.9700in
Shank typeStraight-Cylindrical
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
