Iscar

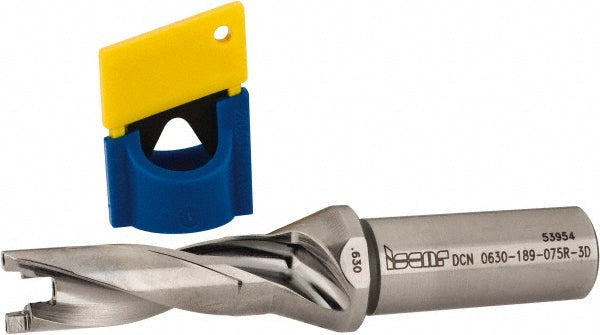

Indexable Drilling - Iscar 3202803
MFR# 3202803Series SumoCham
$308.58List $313.10
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202803 indexable drilling. Series SumoCham.
Specifications
Body length2.8900in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio3xD
Insert seat size16
Maximum drill depth1.8900
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.6650
Minimum drill diameter0.6300
Overall length4.8600in
Shank diameter in3/4in
Shank length1.9700in
Shank typeStraight-Cylindrical
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
