Iscar

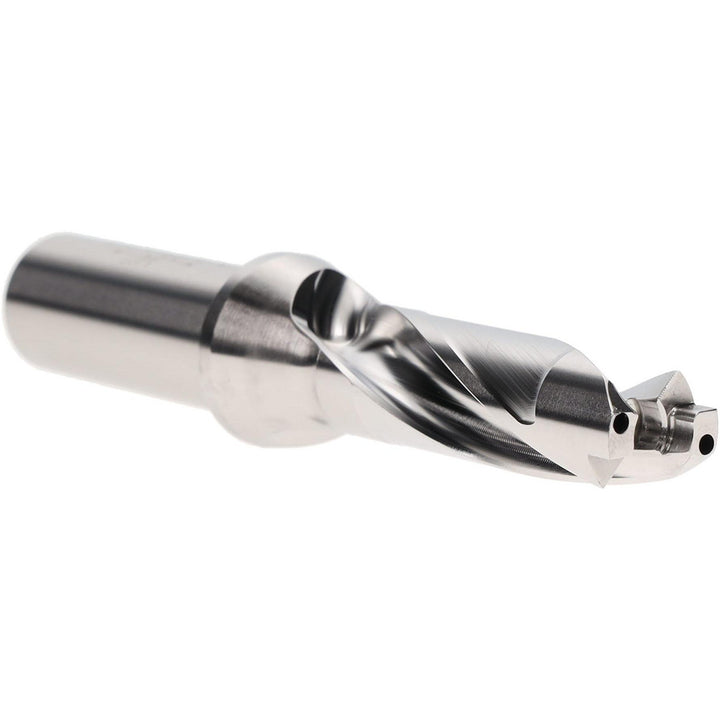

Indexable Drilling - Iscar 3202805
MFR# 3202805Series SumoCham
$359.09List $370.80
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202805 indexable drilling. Series SumoCham.
Specifications
Body length3.0700in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio3xD
Maximum drill depth2.0100
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.7050
Minimum drill diameter0.6690
Overall length5.0400in
Shank diameter in3/4in
Shank length1.9700in
Shank typeStraight-Cylindrical
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
