Iscar

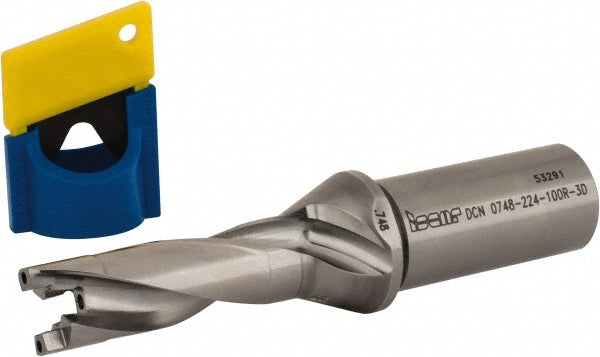

Indexable Drilling - Iscar 3202809
MFR# 3202809Series SumoCham
$395.01List $407.90
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202809 indexable drilling. Series SumoCham.
Specifications
Body length3.4300in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio3xD
Insert seat size19
Maximum drill depth2.2400
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.7830
Minimum drill diameter0.7480
Overall length5.6300in
Shank diameter in1in
Shank length2.2000in
Shank typeStraight-Cylindrical
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
