Iscar

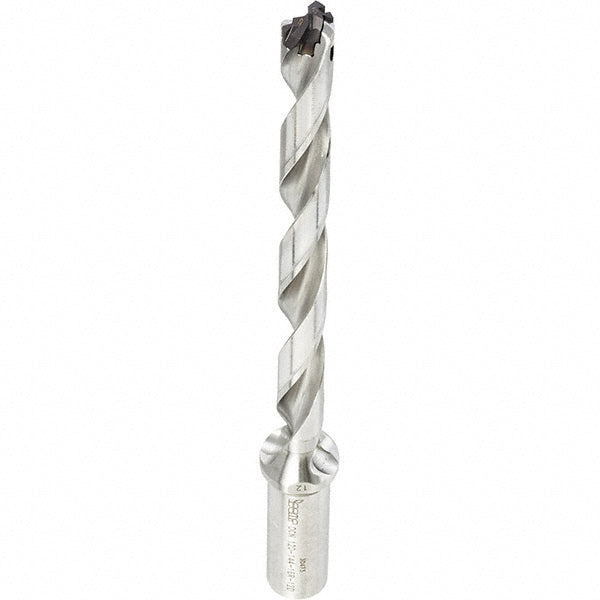

Indexable Drilling - Iscar 3202826
MFR# 3202826Series SumoCham
$459.86List $466.60
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202826 indexable drilling. Series SumoCham.
Specifications
Body length5.3600in
Compatible insert styleFCP; HCP-IQ; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M; QCP-2M
Coolant throughYes
Drill depth by diameter ratio12xD
Flute length4.7900
Insert seat size10
Maximum drill depth4.7900
Maximum drill depth range4.5000 to 6.0000
Maximum drill diameter0.4290
Minimum drill diameter0.3940
Overall length7.2500in
Shank diameter in5/8in
Shank length1.8900in
Shank typeStraight-Cylindrical
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
