Iscar

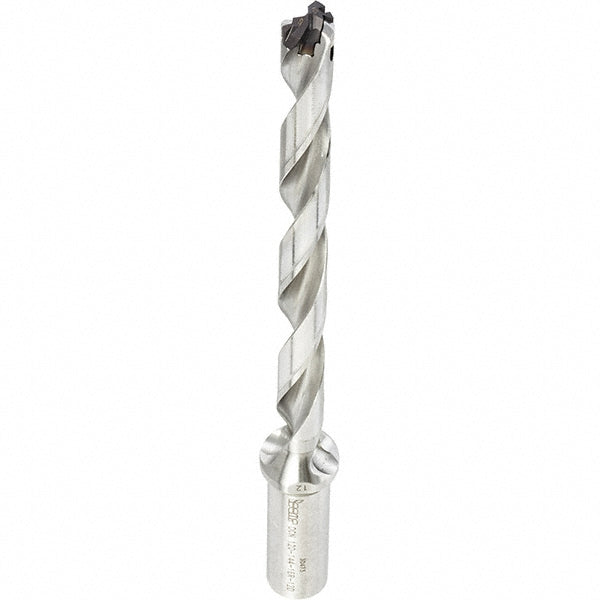

Indexable Drilling - Iscar 3202829
MFR# 3202829Series SumoCham
$498.74List $515.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202829 indexable drilling. Series SumoCham.
Specifications
Body length6.83
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio12xD
Insert seat size13
Maximum drill depth6.1400
Maximum drill depth range6.0000 to 8.0000
Maximum drill diameter0.5280
Minimum drill diameter0.5120
Overall length8.72
Shank diameter0.6300
Shank length1.8900
Shank typeStraight-Cylindrical
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
