Iscar

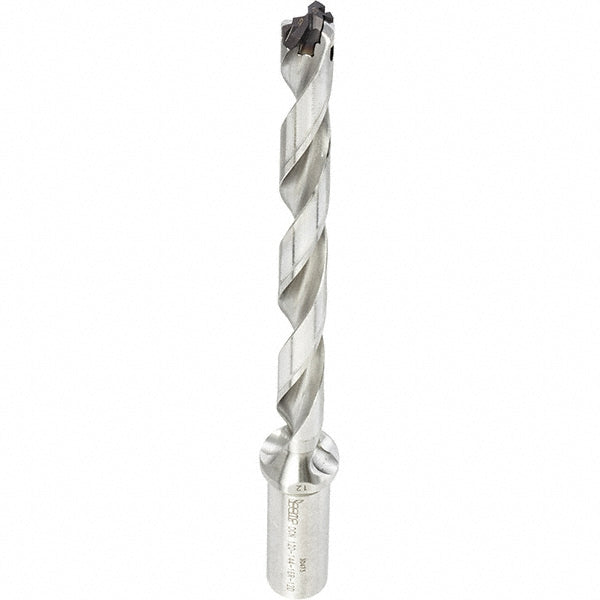

Indexable Drilling - Iscar 3202834
MFR# 3202834Series SumoCham
$637.41List $658.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202834 indexable drilling. Series SumoCham.
Specifications
Body length9.6300in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio12xD
Insert seat size18
Maximum drill depth8.5000
Maximum drill depth range8.0000+
Maximum drill diameter0.7440
Minimum drill diameter0.7090
Shank diameter in1in
Shank length2.2000in
Shank typeStraight-Cylindrical
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
