Iscar

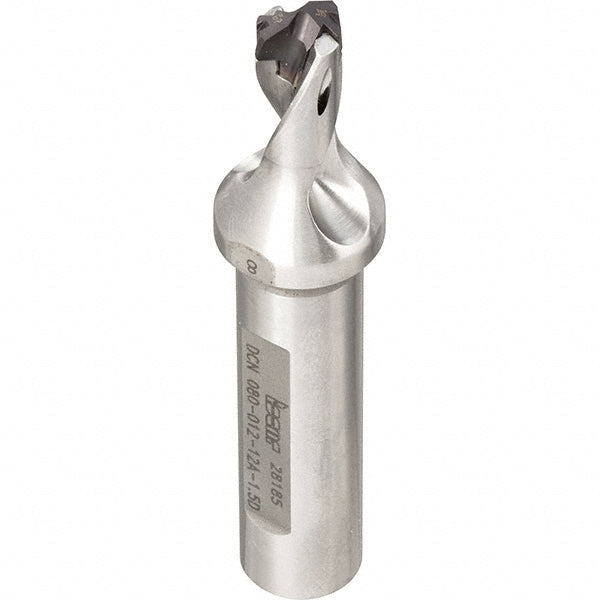

Indexable Drilling - Iscar 3202933
MFR# 3202933Series SumoCham
$260.31List $268.80
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3202933 indexable drilling. Series SumoCham.
Specifications
Body length1.4000in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio3xD
Insert seat size7
Maximum drill depth0.8200
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.2910
Minimum drill diameter0.2750
Overall length3.1700in
Shank diameter in1/2in
Shank length1.7700in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
