Iscar
Indexable Drilling - Iscar 3202946
MFR# 3202946Series SumoCham
$233.39List $241.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

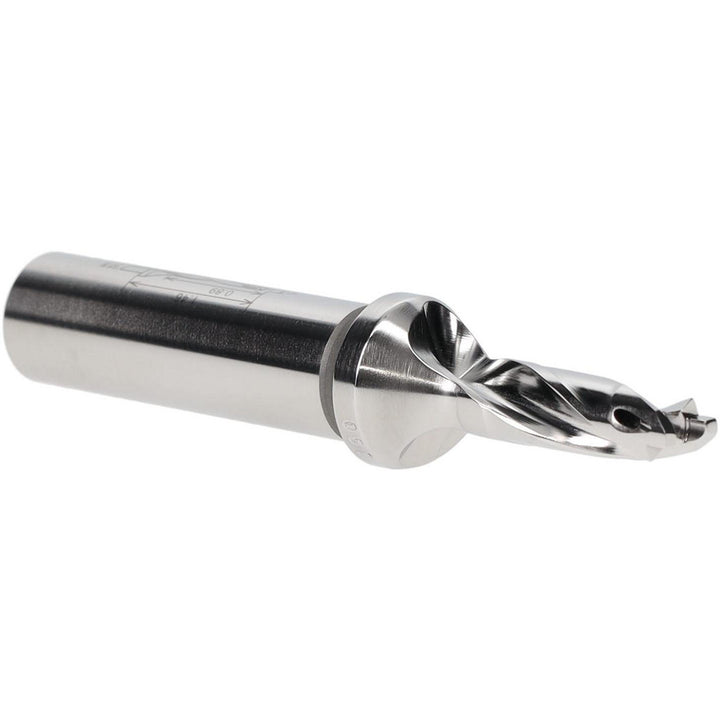

The Iscar 3202946 indexable drilling. Series SumoCham.
Specifications
Body length1.4000in
Compatible insert styleFCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; ICP-2M; QCP-2M
Coolant throughYes
Maximum drill depth0.9400
Maximum drill diameter0.3110
Minimum drill diameter0.2950
Overall length3.1700in
Shank diameter0.5000
Shank length1.7700in
Shank typeFlatted
StandardsISO 13399
Toolholder styleDCN A-3D
Tool applicationHolemaking
