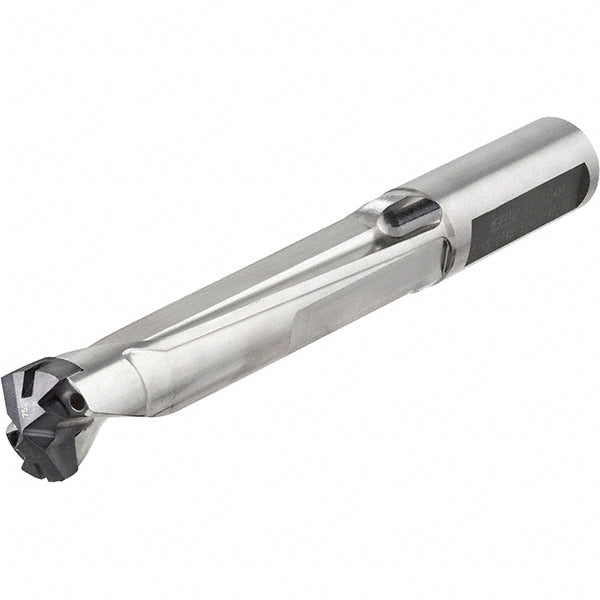

Indexable Drilling - Iscar 3203006
MFR# 3203006Series UniSumoCham
$217.21List $220.40
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3203006 indexable drilling. Series UniSumoCham.
Specifications
Body length1.5276in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio3xD
Insert seat size9
Maximum drill depth1.0630
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.3700
Minimum drill diameter0.3543
Overall length2.9449in
Shank diameter0.3543
Shank length1.4173in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCNS
Tool applicationHolemaking
