Iscar

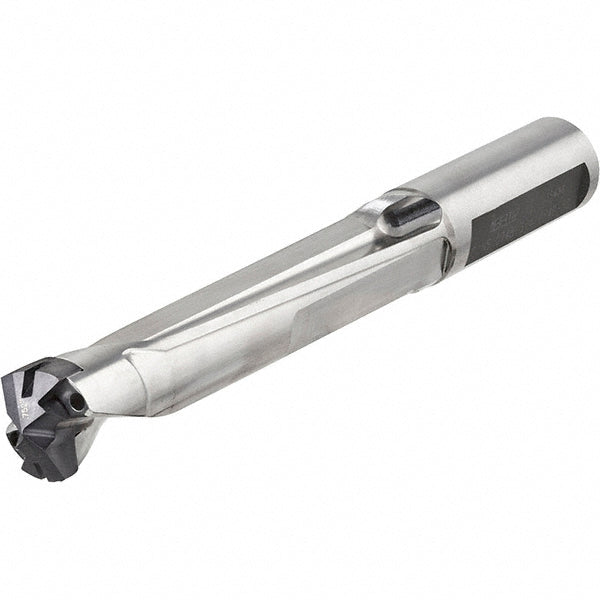

Indexable Drilling - Iscar 3203013
MFR# 3203013Series UniSumoCham
$268.34List $277.10
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3203013 indexable drilling. Series UniSumoCham.
Specifications
Body length2.1063in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio3xD
Insert seat size12
Maximum drill depth1.4764
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.5080
Minimum drill diameter0.4920
Overall length3.9173in
Shank diameter0.5120
Shank length1.8110in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCNS
Tool applicationHolemaking
