Iscar

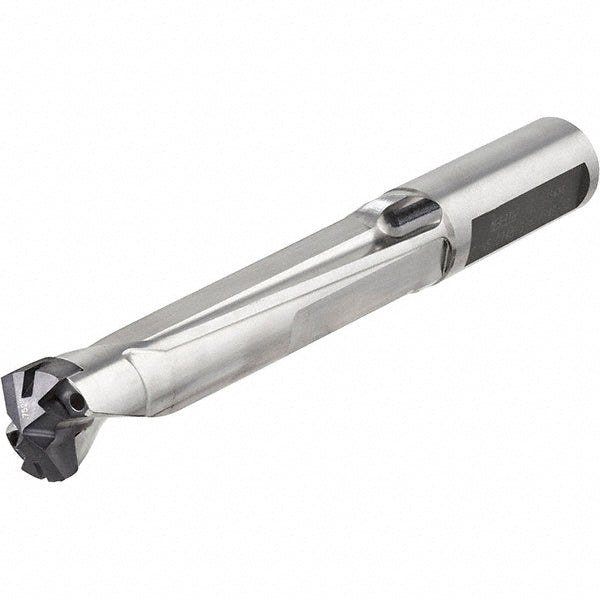

Indexable Drilling - Iscar 3203014
MFR# 3203014Series UniSumoCham
$268.34List $277.10
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3203014 indexable drilling. Series UniSumoCham.
Specifications
Body length2.1890in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio3xD
Insert seat size13
Maximum drill depth1.5354
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.5276
Minimum drill diameter0.5120
Overall length4.0394in
Shank diameter0.5120
Shank length1.8504in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCNS
Tool applicationHolemaking
