Iscar

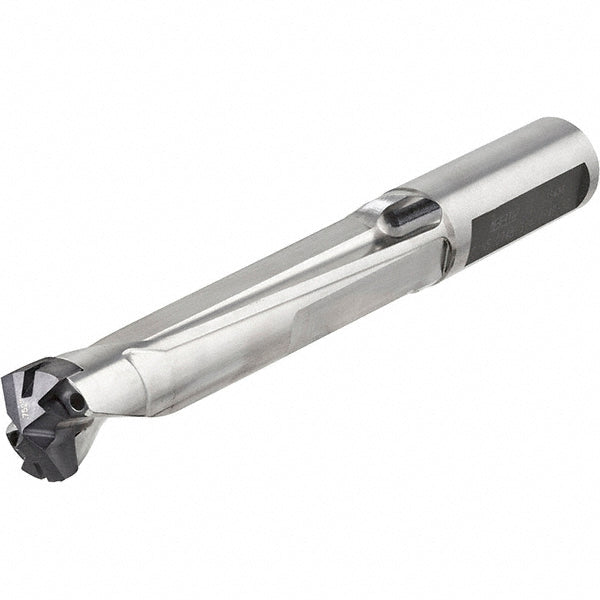

Indexable Drilling - Iscar 3203017
MFR# 3203017Series UniSumoCham
$268.34List $277.10
Save 3%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3203017 indexable drilling. Series UniSumoCham.
Specifications
Body length2.3898in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio3xD
Insert seat size14
Maximum drill depth1.7126
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.5866
Minimum drill diameter0.5710
Overall length4.1693in
Shank diameter0.5906
Shank length1.7717in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCNS
Tool applicationHolemaking
