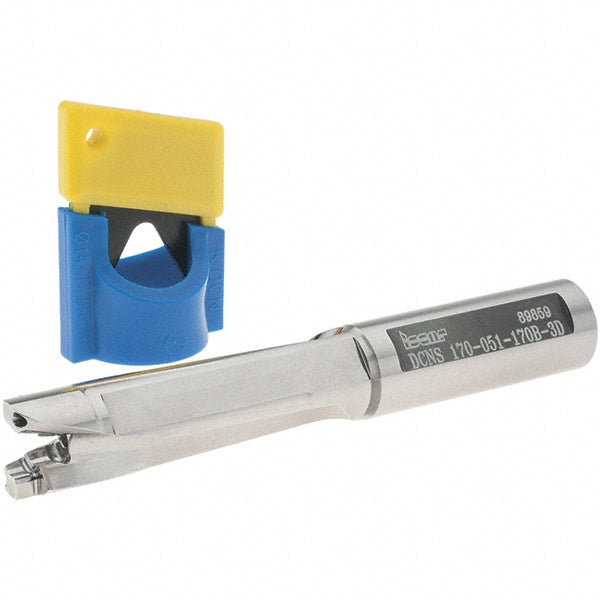

Indexable Drilling - Iscar 3203020
MFR# 3203020Series UniSumoCham
$341.10List $346.10
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3203020 indexable drilling. Series UniSumoCham.
Specifications
Body length2.8307in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio3xD
Insert seat size17
Maximum drill depth2.0079
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.7047
Minimum drill diameter0.6693
Overall length4.7205in
Shank diameter0.6693
Shank length1.8898in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCNS
Tool applicationHolemaking
