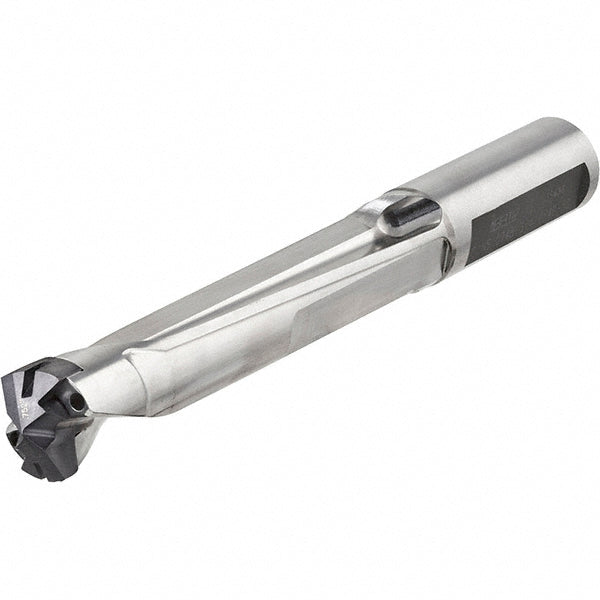

Indexable Drilling - Iscar 3203022
MFR# 3203022Series UniSumoCham
$369.06List $381.10
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3203022 indexable drilling. Series UniSumoCham.
Specifications
Body length3.0900in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio3xD
Insert seat size19
Maximum drill depth2.2400
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.7830
Minimum drill diameter0.7480
Overall length5.2200in
Shank diameter0.7480
Shank length2.1300in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCNS
Tool applicationHolemaking
