Iscar

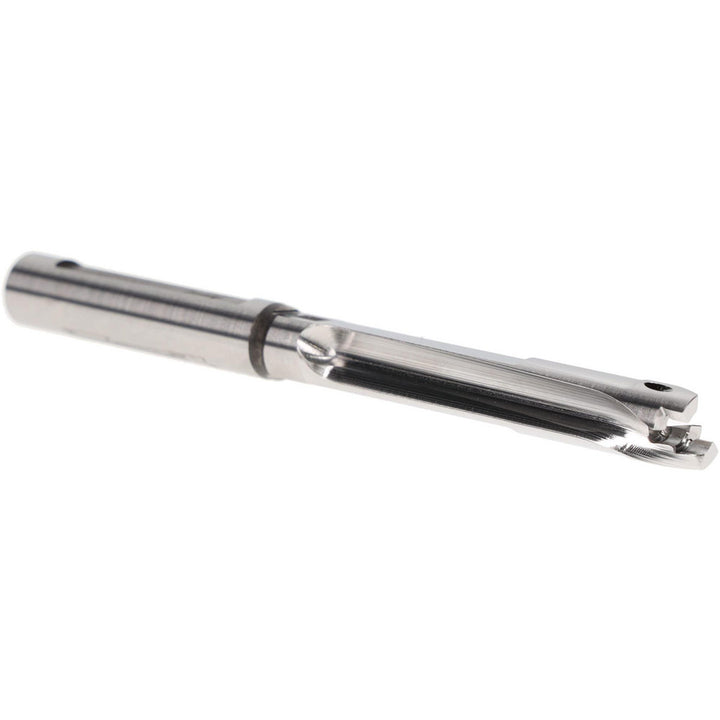

Indexable Drilling - Iscar 3203054
MFR# 3203054Series UniSumoCham
$251.40List $259.60
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3203054 indexable drilling. Series UniSumoCham.
Specifications
Body length2.2200in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio5xD
Insert seat size8
Maximum drill depth1.5700
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.3310
Minimum drill diameter0.3150
Overall length3.6400in
Shank diameter0.3150
Shank length1.4200in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCNS
Tool applicationHolemaking
