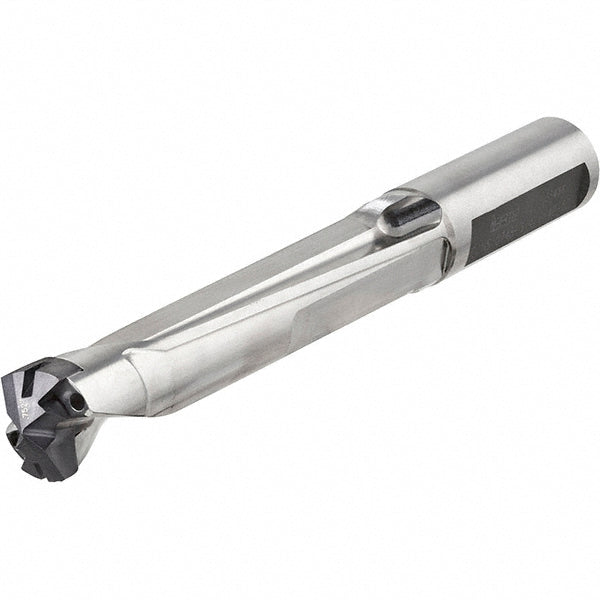

Indexable Drilling - Iscar 3203058
MFR# 3203058Series UniSumoCham
$281.32List $290.50
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3203058 indexable drilling. Series UniSumoCham.
Specifications
Body length2.6700in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio5xD
Insert seat size10
Maximum drill depth2.0700
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.4290
Minimum drill diameter0.4130
Overall length4.2800in
Shank diameter0.4330
Shank length1.6100in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCNS
Tool applicationHolemaking
