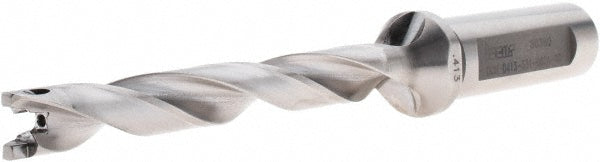

Indexable Drilling - Iscar 3203209
MFR# 3203209Series SumoCham
$401.01List $414.10
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3203209 indexable drilling. Series SumoCham.
Specifications
Body length3.9500in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio8xD
Insert seat size10
Maximum drill depth3.3100
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter0.4300
Minimum drill diameter0.4140
Overall length5.8400in
Shank diameter0.6300
Shank length1.8900in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
