Iscar
Indexable Drilling - Iscar 3203210
MFR# 3203210Series SumoCham
$412.92List $426.40
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

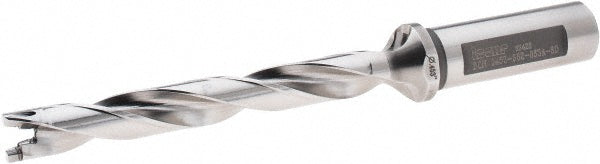

The Iscar 3203210 indexable drilling. Series SumoCham.
Specifications
Body length4.2800in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio8xD
Insert seat size11
Maximum drill depth3.6200
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter0.4690
Minimum drill diameter0.4530
Overall length6.1700in
Shank diameter0.6300
Shank length1.8900in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
