Iscar

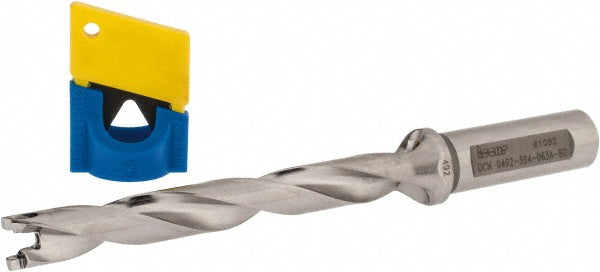

Indexable Drilling - Iscar 3203211
MFR# 3203211Series SumoCham
$412.92List $426.40
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3203211 indexable drilling. Series SumoCham.
Specifications
Body length4.6100in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio8xD
Maximum drill depth3.9400
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter0.5080
Minimum drill diameter0.4920
Overall length6.5000in
Shank diameter0.6300
Shank length1.8900in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
