Iscar

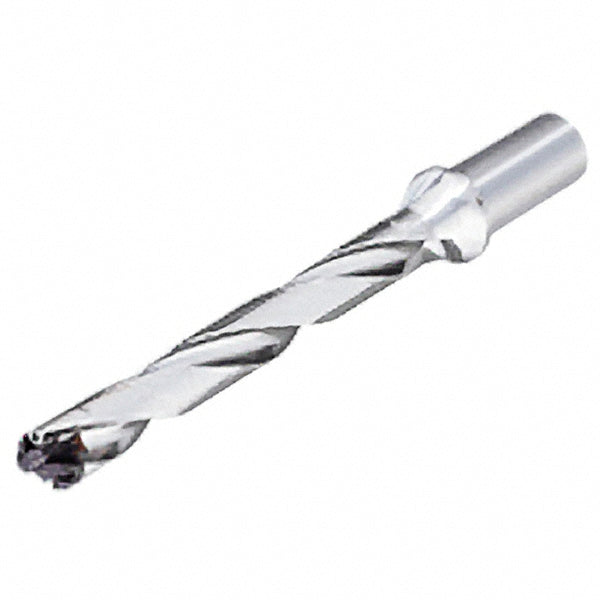

Indexable Drilling - Iscar 3203216
MFR# 3203216Series SumoCham
$350.56List $362.00
Save 3%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3203216 indexable drilling. Series SumoCham.
Specifications
Body length3.95
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio8xD
Insert seat size10
Maximum drill depth3.3100
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter0.4300
Minimum drill diameter0.4140
Overall length5.84
Shank diameter0.6300
Shank length1.8900
Shank typeStraight-Cylindrical
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
