Iscar

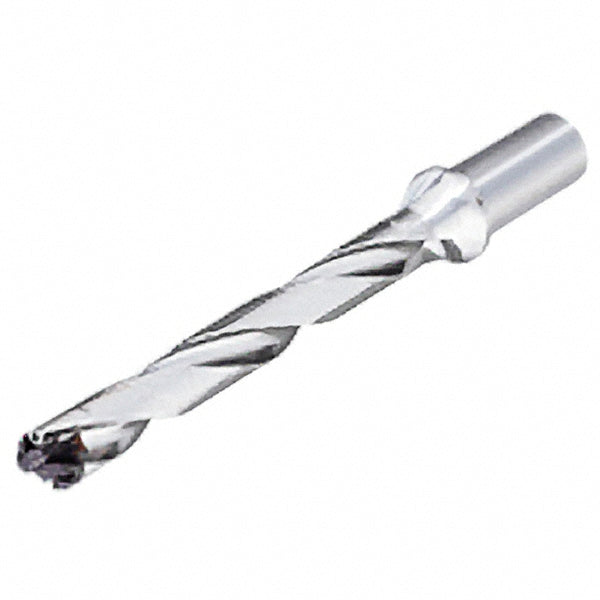

Indexable Drilling - Iscar 3203219
MFR# 3203219Series SumoCham
$399.95List $413.00
Save 3%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3203219 indexable drilling. Series SumoCham.
Specifications
Body length4.9500in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio8xD
Insert seat size13
Maximum drill depth4.2500
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter0.5480
Minimum drill diameter0.5320
Overall length6.8400in
Shank diameter0.6300
Shank length1.8900in
Shank typeStraight-Cylindrical
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
