Iscar
Indexable Drilling - Iscar 3203280
MFR# 3203280Series SumoCham
$308.24List $318.30
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

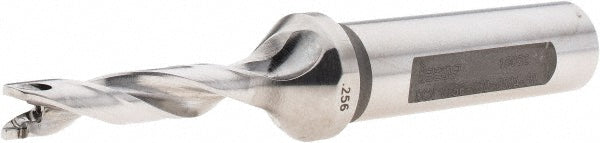

The Iscar 3203280 indexable drilling. Series SumoCham.
Specifications
Body length1.8800in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio5xD
Insert seat size6.5
Maximum drill depth1.3000
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.2710
Minimum drill diameter0.2560
Overall length3.6500in
Shank diameter in1/2in
Shank length1.7700in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
