Iscar

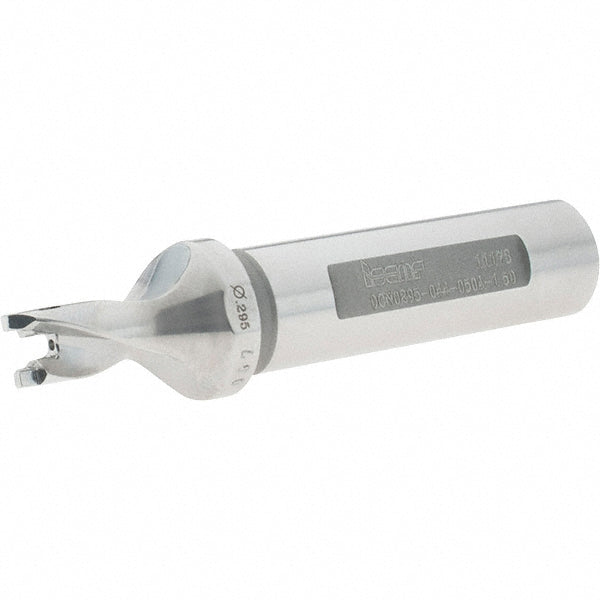

Indexable Drilling - Iscar 3203329
MFR# 3203329Series SumoCham
$232.42List $240.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3203329 indexable drilling. Series SumoCham.
Specifications
Body length0.9900in
Compatible insert styleFCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M
Coolant throughYes
Maximum drill depth0.4400
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.3110
Minimum drill diameter0.2950
Overall length2.7600in
Shank diameter in1/2in
Shank length1.7700in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN A
Tool applicationHolemaking
