Iscar

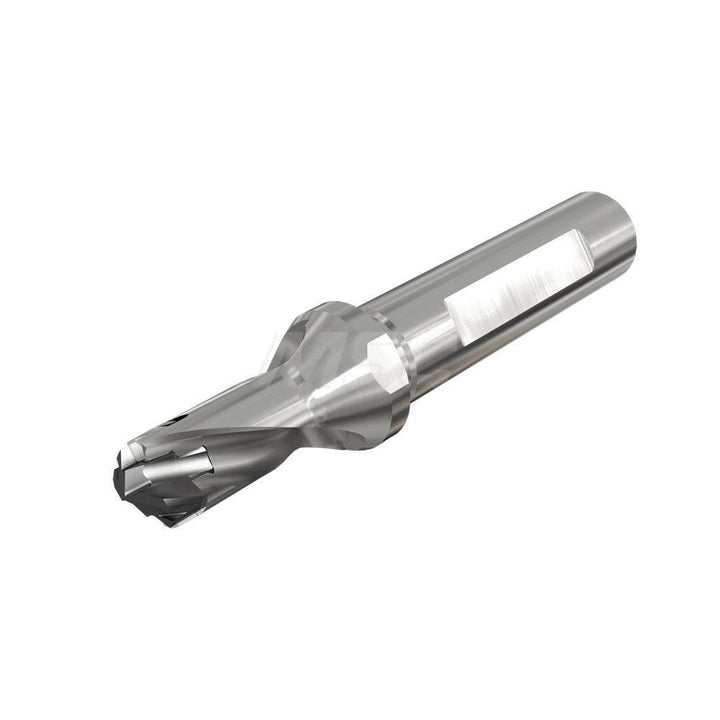

Indexable Drilling - Iscar 3203333
MFR# 3203333Series SumoCham
$232.42List $240.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3203333 indexable drilling. Series SumoCham.
Specifications
Body length1.1000in
Compatible insert styleFCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; ICP-2M; QCP-2M
Coolant throughYes
Maximum drill depth0.5000
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.3500
Minimum drill diameter0.3350
Overall length2.8700in
Shank diameter0.5000
Shank length1.7700in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN A-1.5D
Tool applicationHolemaking
