Iscar
Indexable Drilling - Iscar 3203344
MFR# 3203344Series SumoCham
$234.45List $242.10
Save 3%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

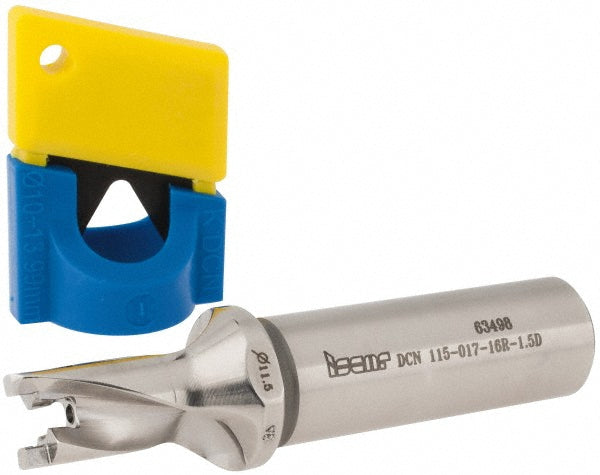

The Iscar 3203344 indexable drilling. Series SumoCham.
Specifications
Body length1.3347in
Compatible insert styleFCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M
Coolant throughYes
Maximum drill depth0.6693
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.4685
Minimum drill diameter0.4528
Overall length3.2244in
Shank diameter0.6299
Shank length1.8898in
Shank typeStraight-Cylindrical
StandardsISO 13399
Toolholder styleDCN R
Tool applicationHolemaking
