Iscar

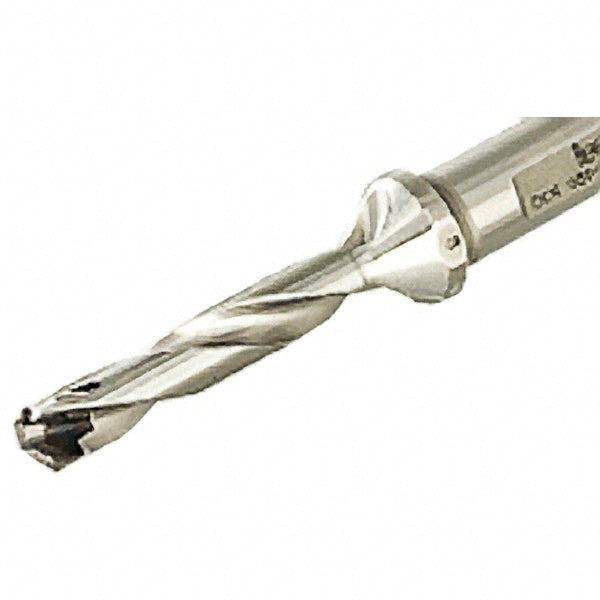

Indexable Drilling - Iscar 3203524
MFR# 3203524Series SumoCham
$690.28List $712.80
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3203524 indexable drilling. Series SumoCham.
Specifications
Body length5.0500in
Compatible insert styleFCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio3xD
Maximum drill depth3.3100
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter1.1380
Minimum drill diameter1.1020
Overall length7.4100in
Shank diameter in1-1/4in
Shank length2.3600in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN A
Tool applicationHolemaking
