Iscar

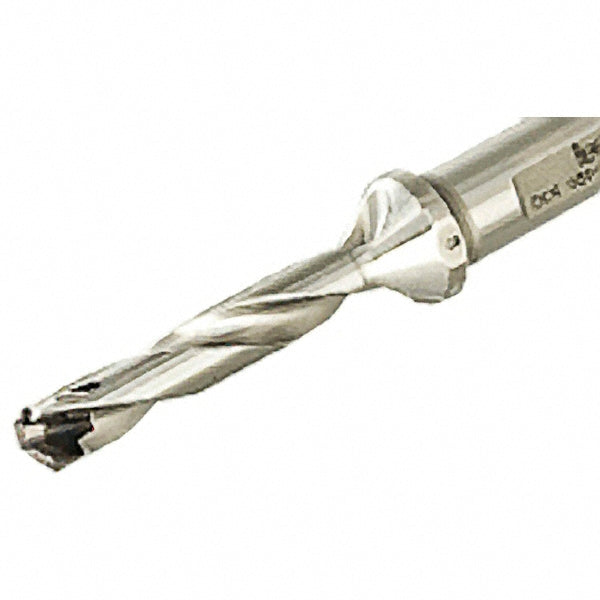

Indexable Drilling - Iscar 3203528
MFR# 3203528Series SumoCham
$742.09List $766.30
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3203528 indexable drilling. Series SumoCham.
Specifications
Body length5.22
Compatible insert styleFCP; HCP-IQ; ICK; ICM; ICP
Coolant throughYes
Drill depth by diameter ratio3xD
Maximum drill depth3.4200
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter1.1770
Minimum drill diameter1.1420
Overall length7.58
Shank diameter1.2500
Shank length2.3600
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN A-3D
Tool applicationHolemaking
