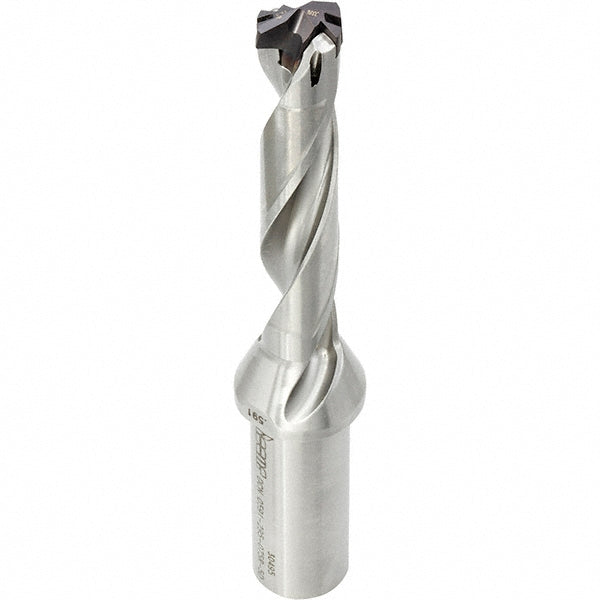

Indexable Drilling - Iscar 3203533
MFR# 3203533Series SumoCham
$874.77List $903.30
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3203533 indexable drilling. Series SumoCham.
Specifications
Body length7.77
Compatible insert styleFCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio5xD
Maximum drill depth5.9000
Maximum drill depth range4.5000 to 6.0000
Maximum drill diameter1.2160
Minimum drill diameter1.1810
Overall length10.13
Shank diameter in1-1/4
Shank length2.3600
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN A
Tool applicationHolemaking
