Iscar

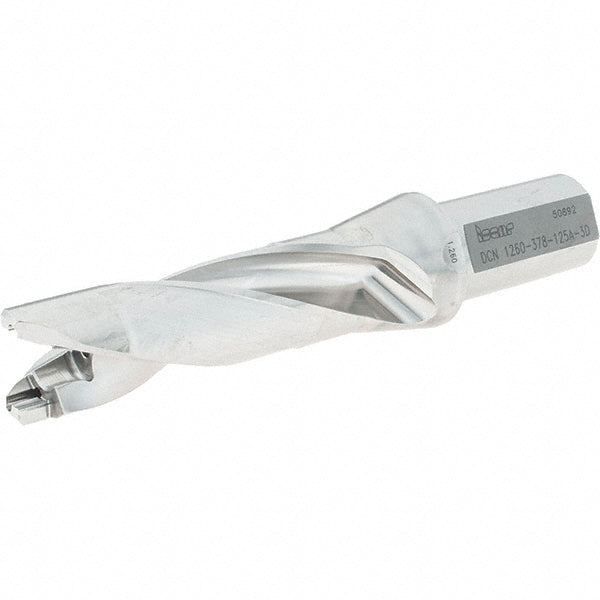

Indexable Drilling - Iscar 3203540
MFR# 3203540Series SumoCham
$767.08List $792.10
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3203540 indexable drilling. Series SumoCham.
Specifications
Body length5.7600in
Compatible insert styleFCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio3xD
Maximum drill depth3.7800
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter1.2960
Minimum drill diameter1.2600
Overall length8.1200in
Shank diameter in1-1/4in
Shank length2.3600in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN A
Tool applicationHolemaking
