Iscar

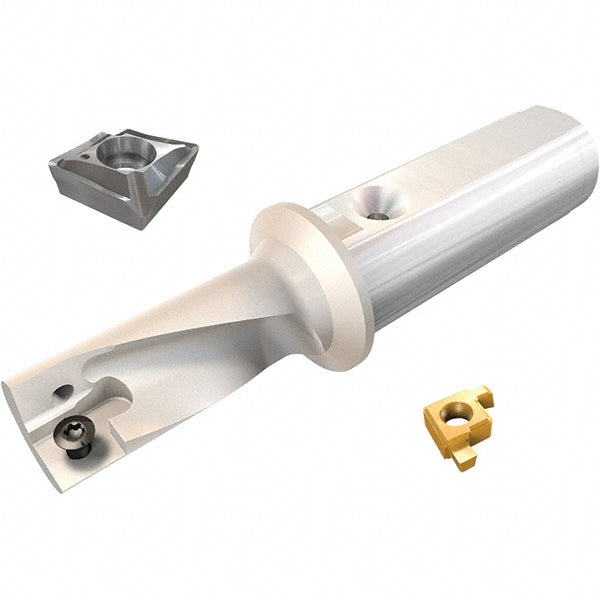

Indexable Drilling - Iscar 3203773
MFR# 3203773Series DRG-MF
$343.40List $354.60
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3203773 indexable drilling. Series DRG-MF.
Specifications
Body length1.3000in
Compatible insert styleXCMT-MF; XCMT-MG
Coolant hole thread typeG
Coolant throughYes
Flute length1.0600
Maximum drill depth1.0600
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.4720
Overall length3.0700in
Shank diameter0.6300
Shank length1.7700in
StandardsISO 13399
Toolholder styleDRG-MF
Tool applicationBoring; Facing; Internal Grooving
