Iscar

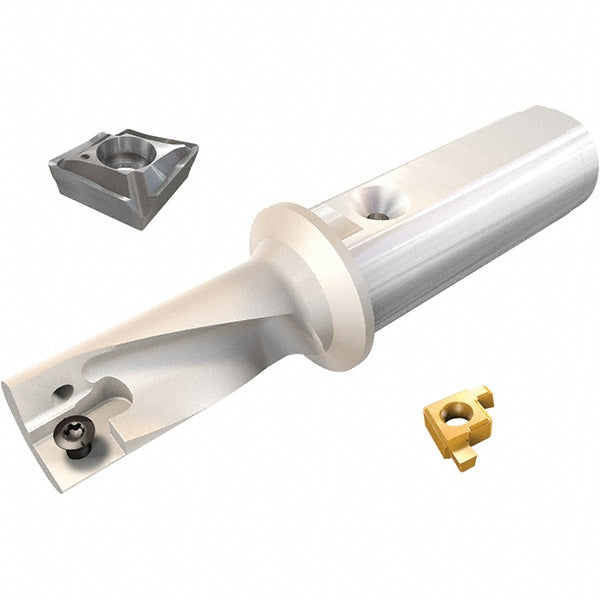

Indexable Drilling - Iscar 3203776
MFR# 3203776Series DRG-MF
$426.68List $440.60
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3203776 indexable drilling. Series DRG-MF.
Specifications
Body length2.17
Compatible insert styleXCMT-MF; XCMT-MG
Coolant hole thread typeG
Coolant throughYes
Flute length1.7700
Maximum drill depth1.7700
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.7870
Overall length4.37
Shank diameter in1
Shank length2.2000
StandardsISO 13399
Toolholder styleDRG-MF
Tool applicationBoring; Facing; Internal Grooving
