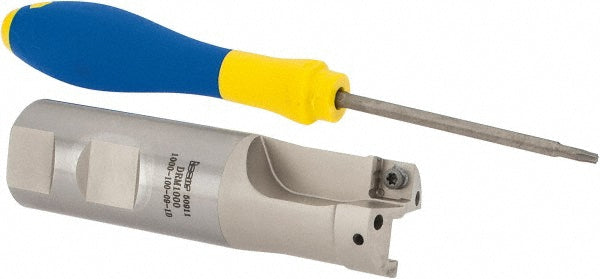

Indexable Drilling - Iscar 3260042
MFR# 3260042Series DRM-1D
$376.90List $389.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3260042 indexable drilling. Series DRM-1D.
Specifications
Body length1.5000
Compatible drill styleDRM
Compatible insert size code09T306
Compatible insert styleSO..
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio1xD
Flute length1.0000
Insert compatibilitySO..09T306
Insert lock screwSR 34-506 M3X0.5
Insert size0.3540
Maximum drill depth in1
Maximum drill depth range1.0000 to 2.0000
Maximum drill diameter in1
Modular connection size1 in
Number of drill inserts2
Overall length3.7000
Shank diameter in1
Shank length2.2000
Shank typeWeldon Flat; Flange
Tool applicationDrilling; Milling; Plunging; Shouldering; Slotting; Spot Facing
Tool materialSteel
Tool performanceGeneral Purpose
