Iscar

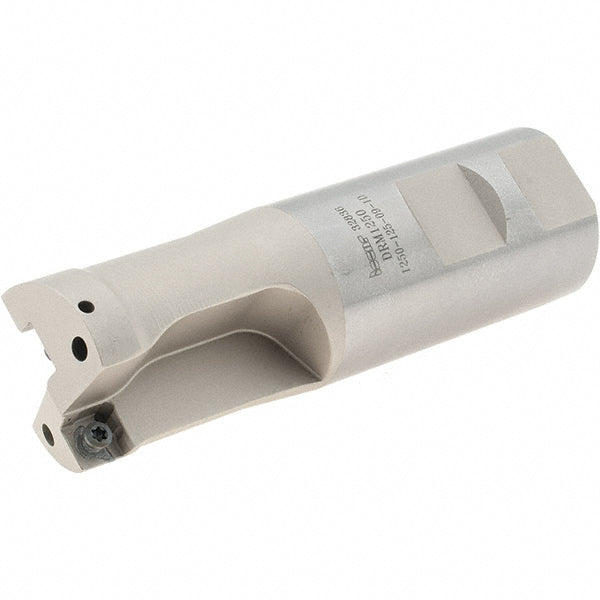

Indexable Drilling - Iscar 3260045
MFR# 3260045Series DRDRILLS
$447.99List $462.60
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3260045 indexable drilling. Series DRDRILLS.
Specifications
Body length1.8700
Compatible drill styleDRM
Coolant throughYes
Drill depth by diameter ratio1xD
Drill diameter in1-1/4
Insert compatibilitySOMT-DT; SOMT-GF
Maximum drill depth in1-1/4
Maximum drill depth range1.0000 to 2.0000
Maximum drill diameter in1-1/4
Modular connection size1-1/4 in
Number of drill inserts2
Shank diameter in1-1/4
Shank length2.2800
Shank typeStraight-Cylindrical
Tool applicationPlunging; Shouldering; Slotting; Spot Facing
Tool performanceGeneral Purpose
