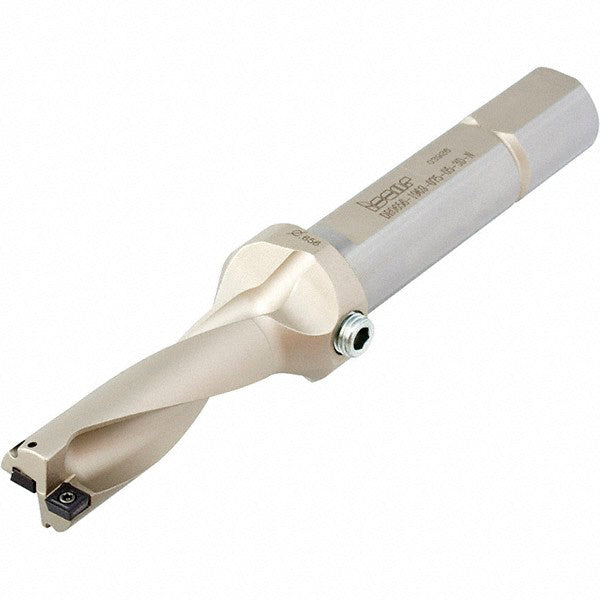

Indexable Drilling - Iscar 3260051
MFR# 3260051Series DR-4D-N
$656.29List $677.70
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3260051 indexable drilling. Series DR-4D-N.
Specifications
Body length3.7000
Body side coolant hole thread size in1/16-27
Collar diameter1.2600
Compatible drill styleDR
Compatible insert size code060304
Compatible insert styleSOMX
Coolant entry style code3- Axial Concentric & Radial
Coolant hole thread size"1/16-27 NPT"
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio4xD
Flute length2.8400
Insert compatibilitySOMX060304
Insert lock screwSR 34-508/L
Insert size0.2441
Maximum drill depth2.8400
Maximum drill depth range2.0000 to 3.0000
Maximum drill diameter0.7990
Modular connection size1 in
Neck diameter in1.2600
Number of drill inserts2
Overall length6.7000
Shank diameter in1
Shank end coolant hole thread size in3/8-18
Shank length3.0000
Shank typeWeldon Flat
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
