Iscar

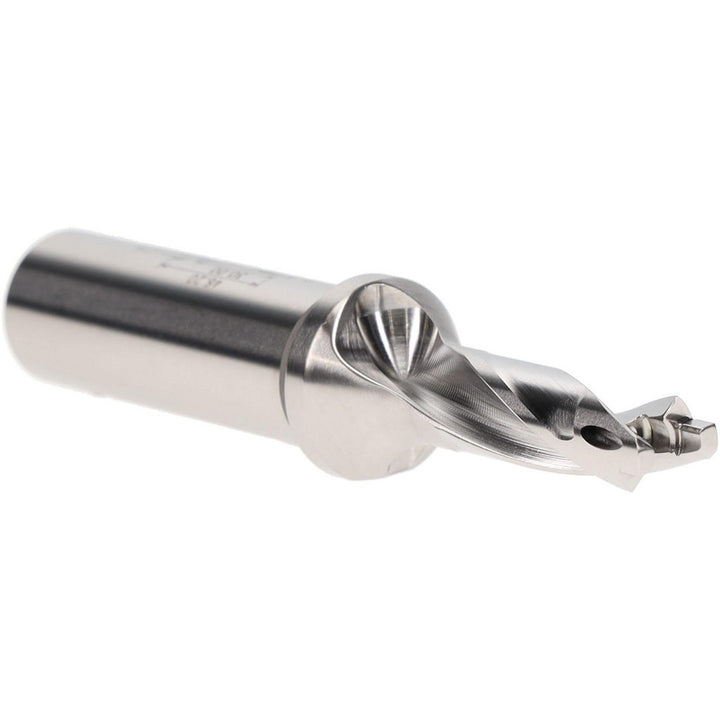

Indexable Drilling - Iscar 3260080
MFR# 3260080Series SumoCham
$282.30List $291.50
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3260080 indexable drilling. Series SumoCham.
Specifications
Body length46.20
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio3xD
Insert seat size10
Maximum drill depth (mm)30.00
Maximum drill depth range (mm)0.00 to 40.00
Maximum drill diameter (mm)10.40
Minimum drill diameter (mm)10.00
Overall length (mm)94.20mm
Shank diameter (mm)16.00mm
Shank length (mm)48.00mm
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
