Iscar

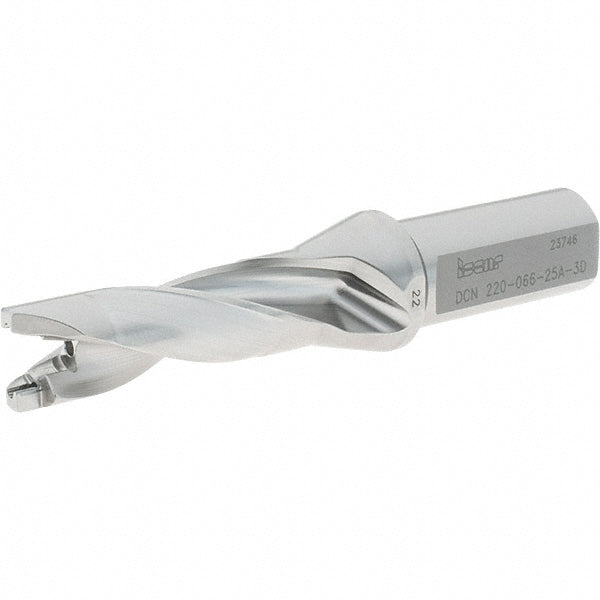

Indexable Drilling - Iscar 3260086
MFR# 3260086Series SumoCham
$526.63List $543.80
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3260086 indexable drilling. Series SumoCham.
Specifications
Body length100.80
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio3xD
Insert seat size22
Maximum drill depth (mm)66.00
Maximum drill depth range (mm)60.00 to 80.00
Maximum drill diameter (mm)22.90
Minimum drill diameter (mm)22.00
Overall length (mm)156.80mm
Shank diameter (mm)25.00mm
Shank length (mm)56.00mm
Shank typeWeldon Flat
Toolholder styleDCN
