Iscar
Indexable Drilling - Iscar 3260095
MFR# 3260095Series SumoCham
$282.30List $291.50
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

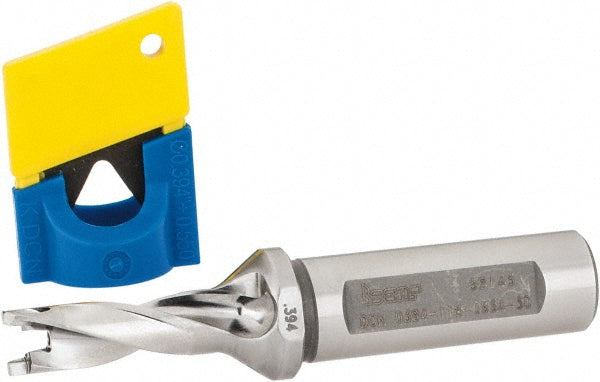

The Iscar 3260095 indexable drilling. Series SumoCham.
Specifications
Body length1.8200in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio3xD
Maximum drill depth1.1800
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.4090
Minimum drill diameter0.3940
Overall length3.7100in
Shank diameter in5/8in
Shank length1.8900in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
