Iscar

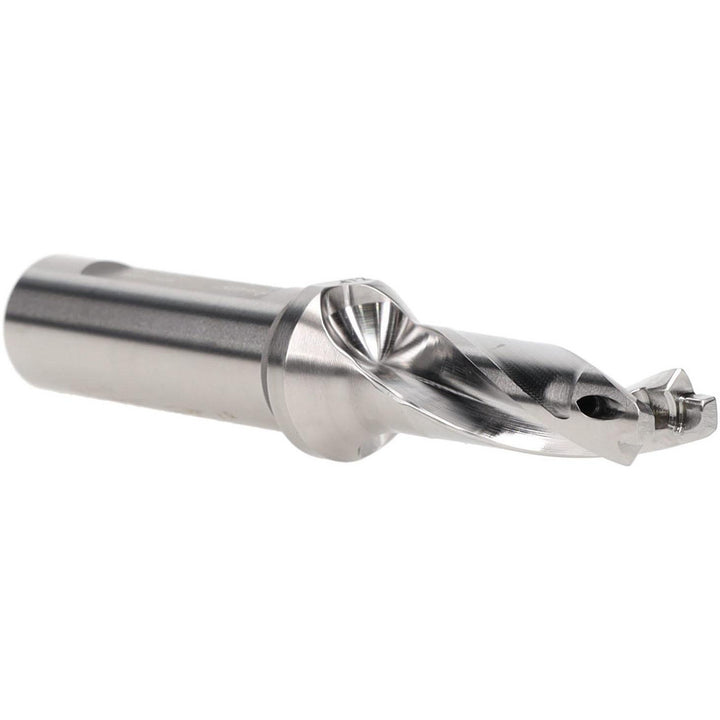

Indexable Drilling - Iscar 3260096
MFR# 3260096Series SumoCham
$295.27List $304.90
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3260096 indexable drilling. Series SumoCham.
Specifications
Body length2.0900in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio3xD
Maximum drill depth1.4100
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.4880
Minimum drill diameter0.4720
Overall length3.9800in
Shank diameter in5/8in
Shank length1.8900in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
