Iscar

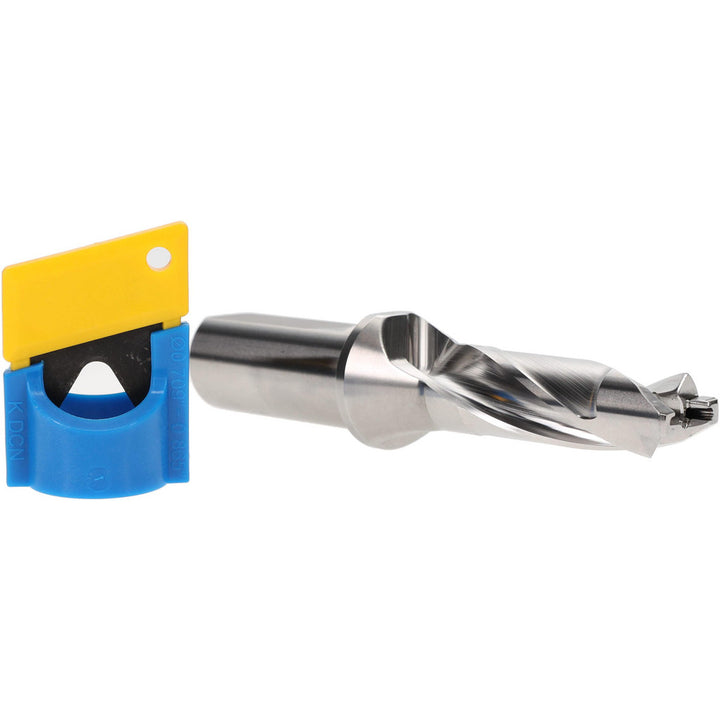

Indexable Drilling - Iscar 3260099
MFR# 3260099Series SumoCham
$438.88List $453.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3260099 indexable drilling. Series SumoCham.
Specifications
Body length3.6100in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio3xD
Maximum drill depth2.3600
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.8230
Minimum drill diameter0.7870
Overall length5.8100in
Shank diameter in1in
Shank length2.2000in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
